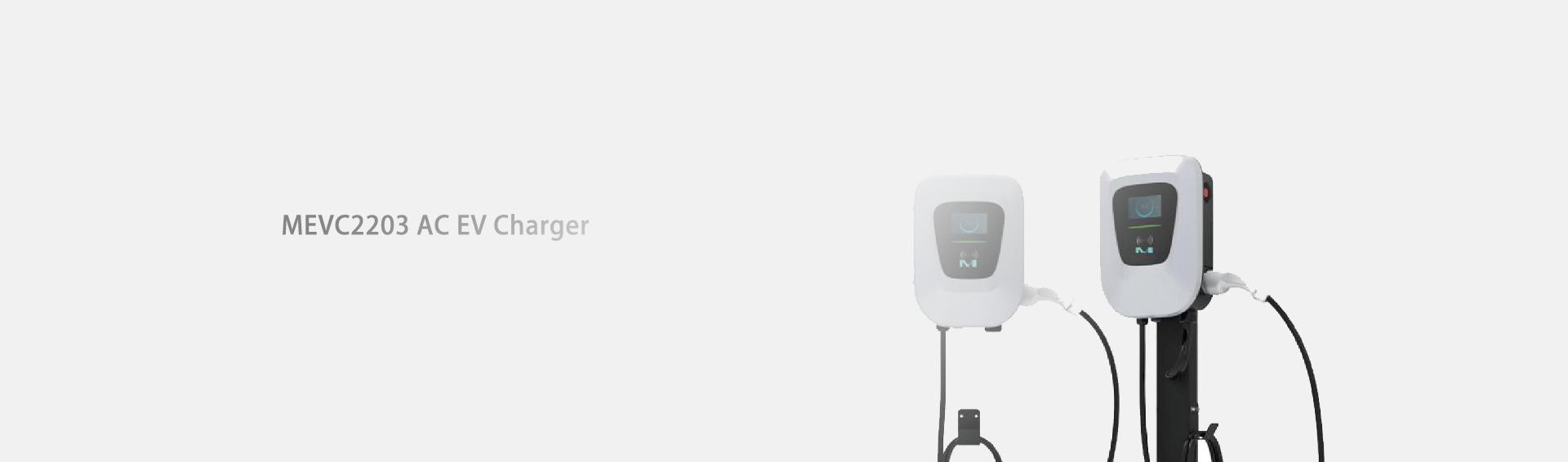

MEVC2203E

產品詳情文檔下載

溫馨提示：

"參數以實際情況為準，最終解釋權歸本公司所有"

    INPUT
  • 230VAC±10% / 400VAC±10%

    Rated Voltage

  • 50Hz / 60Hz

    Frequency

  • 1P+N+PE / 3P+N+PE

    Power Supply

  • 7kW / 11kW / 22kW

    Output Power

  • 32A / 16&32A

    Output Current

    OUTPUT
  • 230VAC±10% / 400VAC±10%

    Output Voltage

  • Plug

    Connection

  • 5 meters

    Cable Length

  • 1

    Number of Ports

    SAFETY
  • Type A + DC 6mA Protection

    Leakage

  • IP55

    Ingress

  • IK08

    Impact

  • CE

    Certification

  • IEC61851-1/IEC62196-1/2

    Certification Standard

    ENVIRONMENTAL
  • -30℃~60℃

    Operating Temperature

  • -40℃~80℃

    StorageTemperature

  • ≤2000m

    Work Altitude

  • ≤ 95% Non Condensation

    Work Humidity

    COMMUNICATION
  • √

    WIFI

  • Optional

    Ethernet

  • Optional

    4G

  • OCPP1.6J (JSON)

    OCPP

  • Plug/RFID/APP

    Initiating Mode

    BASIC
  • 4.3 Inch LCD

    HIMI

  • Type 2

    Connector Type

  • Metallic Grey

    Shell Color

  • (ABC+PC)-Blend

    Shell Material

  • Wall-mount/Pole-mount

    Installation Method

    PACKAGE
  • 300*154*420mm

    Product Pimension (W*D*H)

  • Carton

    External Package

  • Over/under Voltage Protection

  • Over/under Current Protection

  • Over/under Temperature Protection

  • Lightning Protection

  • Ground Protection

  • Slant Power Protection
