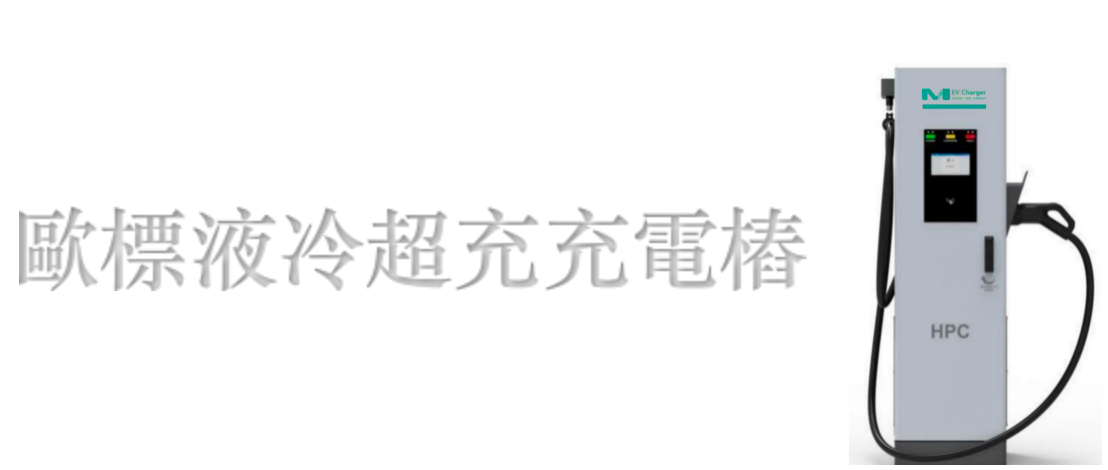

MEVC3302 Liquid Cooled Super Charger 600kW CE

產品詳情文檔下載

溫馨提示:

"參數以實際情況為準,最終解釋權歸本公司所有"

    Input parameters
  • 150-1000VDC

    DC Voltage

  • 1P+N

    AC Power supply

  • 230V(±10%)

    AC Voltage

  • 50/60Hz

    Frequency

    Output parameters
  • 1

    Number of Output Ports

  • CCS1/CCS2/GBT

    Connector

  • 150-1000VDC

    Voltage

  • 600A

    Maximum current

  • 600kW

    Maximum power

  • ≤0.5%

    Voltage accuracy

  • ≤1.0%

    Current accuracy

    Environmental parameters
  • -30℃~+50℃

    Operating temperature

  • -40℃~+75℃

    Storage temperature

  • Level C

    Lightning protection

  • IP55/IK10

    IP and IK rating

  • ≤2000m

    Operating altitude

  • 5%-95% RH non-condensing

    Humidity

    Protection functions
  • Over current

  • Under voltage

  • Over voltage

  • Short circuit

  • Emergency stop

  • Over temperature protection

  • Surge protection

  • RCD

  • Insulation monitoring

  • Reverse polarity protection

    Others
  • 7-inch touchscreen

    HMI

  • IC Card/APP

    Payment support

  • Accuracy Class 1.0 energy meter

    Power meter

  • 5m

    DC Cable length

  • ≤60dB

    Operational noise level

  • Ethernet/4G

    Communication

  • CAN(alternative:RS485)

    Interface protocol

  • Galvanized steel

    Enclosure type

  • 450x400x1600mm

    Dimensions (D x W x H)

  • 120kg

    Weight

  • IEC61851-1

  • IEC61851-23

  • IEC61851-24

  • IEC62196-1

  • IEC62196-3
