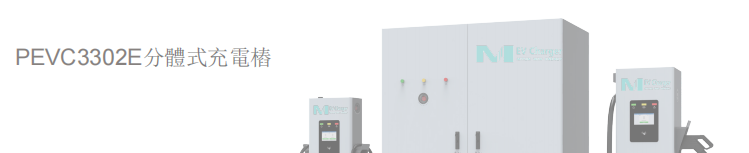

PEVC3302 CE

產品詳情文檔下載

溫馨提示：

"參數以實際情況為準，最終解釋權歸本公司所有"

    Input Parameters of Power cabinet
  • 3P+N+PE

    AC Power supply

  • 400VAC±10%

    AC Voltage

  • 50/60Hz

    Frequency

  • ≤5%

    THDi

  • ≥95%(load: 50%–100%)

    Efficiency

  • ≥0.99(load: 50%–100%)

    Power factor

    Output parameters of Power cabinet
  • 8(max)

    Number of Output Ports

  • 150-1000VDC

    Voltage

  • 360kW/480kW

    Output power

  • ≤0.5%

    Voltage accuracy

  • ≤1%

    Current accuracy

    Environmental parameters of Power cabinet
  • –30°C~+50°C

    Operating temperature

  • –40°C~+75°C

    Storage temperature

  • Level C

    Lightning protection

  • IP55/IK10

    IP and IK rating

  • ≤2000m

    Operating altitude

  • 5%–95% RH non-condensing

    Humidity

    Safety protection of Power cabinet
  • ≥10MΩ

    Insulation resistance

  • ≥2500VDC

    Impulse voltage

    Protection functions of Power cabinet
  • √

    Over current

  • √

    Under voltage

  • √

    Over voltage

  • √

    Short circuit

  • √

    Emergency stop

  • √

    Over temperature protection

  • √

    Surge protection

  • √

    RCD

    Others of Power cabinet
  • Forced air cooling

    Cooling system

  • ≤65dB

    Operational noise leve

  • Dynamic flexibility distribution

    Power distribution mode

  • CAN(alternative:RS485)

    Interface protoco

  • Galvanized sheet steel

    Enclosure type

  • 1600x850x2000mm

    Dimensions (D x W x H)

  • 700kg

    Weight

    Input parameters of Charge station
  • 150-1000VDC

    DC Voltage

  • 1P+N

    AC Power supply

  • 230V(±10%)

    AC Voltage

  • 50/60Hz

    Frequency

    Output parameters of Charge station
  • 2

    Number of Output Ports

  • CCS1/CCS2/GBT

    Connector

  • 150-1000VDC

    Voltage

  • 250A

    Maximum current per channel

  • 250kW

    Maximum power per channel

  • ≤0.5%

    Voltage accuracy

  • ≤1.0%

    Current accuracy

    Environmental parameters of Charge station
  • –30°C~+50°C

    Operating temperature

  • –40°C~+75°C

    Storage temperature

  • Level C

    Lightning protection

  • IP55/IK10

    IP and IK rating

  • ≤2000m

    Operating altitude

  • 5%–95% RH non-condensing

    Humidity

    Protection functions of Charge station
  • √

    Over current

  • √

    Under voltage

  • √

    Over voltage

  • √

    Short circuit

  • √

    Emergency stop

  • √

    Over temperature protection

  • √

    Surge protection

  • √

    RCD

  • √

    Insulation monitoring

  • √

    Reverse polarity protection

    Others of Charge station
  • 7-inch touchscreen

    HMI

  • IC Card/APP

    Payment support

  • Accuracy Class 1.0 energy meter

    Power meter

  • 5m

    DC Cable length

  • ≤45dB

    Operational noise level

  • Ethernet/4G

    Communication

  • CAN(alternative:RS485)

    Interface protocol

  • Galvanized sheet steel

    Enclosure type

  • 450x200x1450mm

    Dimensions (D x W x H)

  • 85kg

    Weight

    Input parameters of HPC Charge station
  • 150-1000VDC

    DC Voltage

  • 1P+N

    AC Power supply

  • 230V(±10%)

    AC Voltage

  • 50/60Hz

    Frequency

    Output parameters of HPC Charge station
  • 1

    Number of Output Ports

  • CCS1/CCS2/GBT

    Connector

  • 150-1000VDC

    Voltage

  • 500A

    Maximum current

  • 480kW

    Maximum power

  • ≤0.5%

    Voltage accuracy

  • ≤1.0%

    Current accuracy

    Environmental parameters of HPC Charge station
  • –30°C~+50°C

    Operating temperature

  • –40°C~+75°C

    Storage temperature

  • Level C

    Lightning protection

  • IP55/IK10

    IP and IK rating

  • ≤2000m

    Operating altitude

  • 5%–95% RH non-condensing

    Humidity

    Protection functions of HPC Charge station
  • √

    Over current

  • √

    Under voltage

  • √

    Over voltage

  • √

    Short circuit

  • √

    Emergency stop

  • √

    Over temperature protection

  • √

    Surge protection

  • √

    RCD

  • √

    Insulation monitoring

  • √

    Reverse polarity protection

    Others of HPC Charge station
  • 7-inch touchscreen

    HMI

  • IC Card/APP

    Payment support

  • Accuracy Class 1.0 energy meter

    Power meter

  • 5m

    DC Cable length

  • ≤60dB

    Operational noise level

  • Ethernet/4G

    Communication

  • CAN(alternative:RS485)

    Interface protocol

  • Galvanized sheet steel

    Enclosure type

  • 450x400x1600mm

    Dimensions (D x W x H)

  • 120kg

    Weight

  • IEC61851-1

  • IEC61851-23

  • IEC61851-24

  • IEC62196-1

  • IEC62196-3

  • IEC61851-21-2
