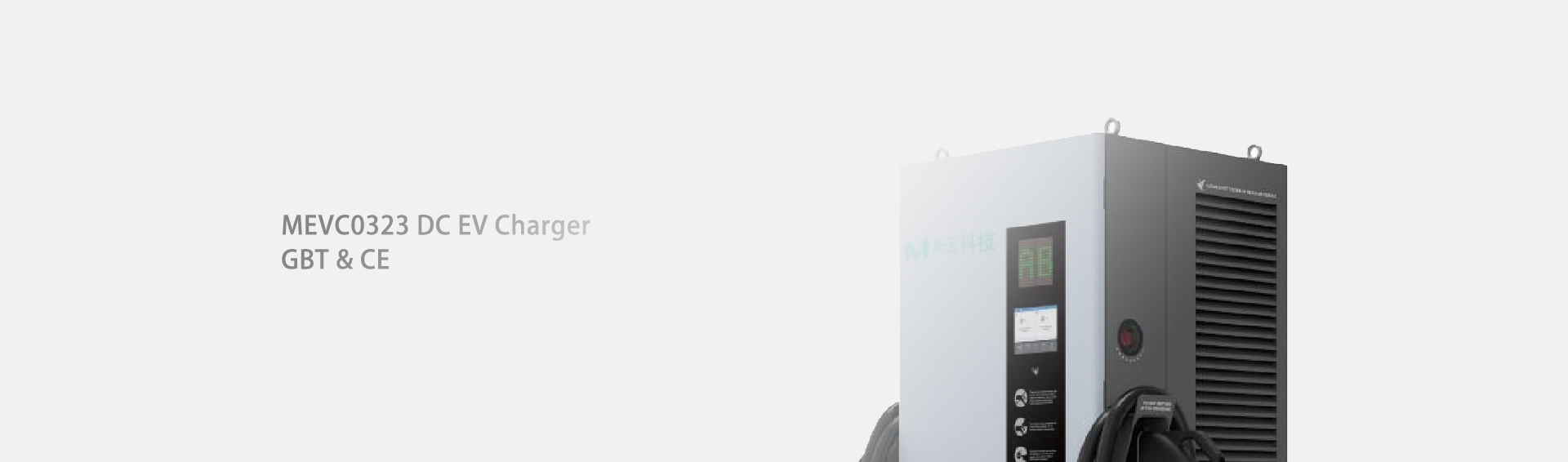

MEVC0323-180KW-400KW CE

產品詳情文檔下載

溫馨提示：

"參數以實際情況為準，最終解釋權歸本公司所有"

    Input
  • 3P+N+PE

    Power Supply

  • 400VAC±10%

    Rated voltage

  • 50/60Hz

    Frequency

  • ≤5%

    THDi

  • ≥95%

    Efficiency

  • ≥0.98

    Power Factor

    Output
  • CCS1/CCS2

    Connector Type

  • 150-1000VDC

    Voltage

  • 250A/300A max

    DC Current

  • 180kW/240kW/300kW 320kW/360kW/400kW

    Power Rating

  • ≤0.5%

    Voltage Accuracy

  • ≤±1%

    Current Accuracy

    General
  • 7-Inch Touchscreen

    HMI

  • RFID Card,APP

    Payment Method

  • 5m

    Cable Length

  • OCPP 1.6J

    Communication Protocol

  • ≤75dB

    Operating Noise Level

  • IP54

    Ingress Rating

  • IK10

    IK Rating

  • Accuracy Class 1.0 energy meter

    Power Meter

  • Galvanized steel, surface sprayed with anti-corrosion paint

    Enclosure

  • Indoor / Outdoor

    Place of Installation

  • 750*750*1900mm

    Product Dimension(W*D*H)

  • 1000*920*2050mm

    Package Dimension(W*D*H)

  • Over Current,Under Voltage, Over Voltage,Short Circuit, Surge Protection,Over Temperature, Ground Protection，Residual Current

    Protection

  • CE

    Certification

    Environmental
  • –30°C~+50°C

    Operating temperature

  • –40°C~+75°C

    Storage temperature

  • ≤2000m

    Maximum Installation Height

  • 5%~95% RH

    Operating Humidity

  • EN/IEC 61851-1

  • EN/IEC 61851-23

  • EN/IEC 61851-24

  • IEC 62196-1

  • IEC 62196-3
