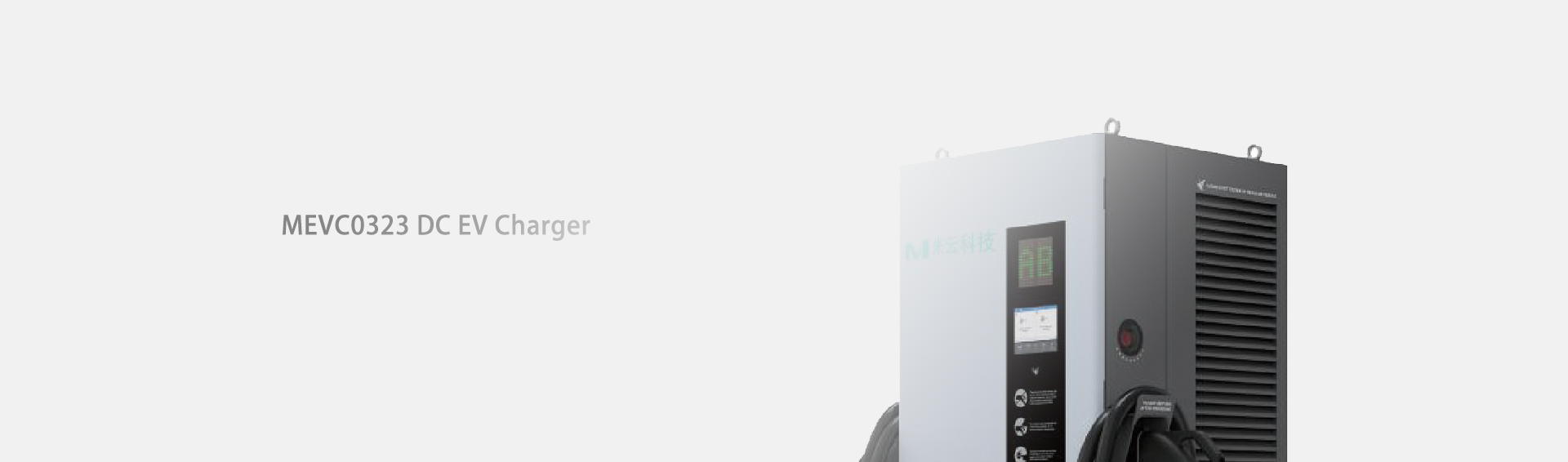

MEVC0323-180/240kW CE

產品詳情文檔下載

溫馨提示：

"參數以實際情況為準，最終解釋權歸本公司所有"

    INPUT
  • 400VAC±10%

    Rated Voltage

  • 3P+N+E

    Power Supply

  • 50/60Hz

    Frequency

  • ≥0.98

    Power Factor

  • ≤5%

    THDI

  • ≥95%

    Efficiency

    OUTPUT
  • CCS 2 or CCS Combo 1 + CCS Combo 2 or CCS 2 + JAP

    Connector Type

  • 150-1000VDC

    Voltage

  • 180kW / 240kW

    Power Rating

  • 250A (max Single)

    Max Current

  • ≤0.5%

    Voltage Accuracy

  • ≤±1%

    Current Accuracy

    GENERAL
  • 7 Inch LCD Touch Screen

    HIMI

  • RFID Card/APP

    Payment

  • 5 meters

    Cable Length

  • Cellular Modem: 4G; LAN:10/100Base-T Ethernet

    Network Connection

  • OCPP 1.6J

    Communication Protocol

  • ≤75dB

    Operating Noise

  • IP55

    Ingress

  • IK10

    IK

  • Accuracy Class 1.0

    Power Meter

  • Galvanized Steel, Surface Sprayed with Anti-Corrosion Paint

    Enclosure

  • Indoor/Outdoor

    Place of Installation

  • 750*750*1900mm

    roduct Pimention (W*D*H)

  • 1000*920*2050mm

    Package Pimention (W*D*H)

  • Over Current/Under Voltage/Over Voltage/Short Circit/Residual Current/Surge/Over Temperature/Ground

    Protection Functions

    ENVIRONMENTAL
  • -30℃~55℃

    Operating Temperature

  • -40℃~75℃

    StorageTemperature

  • ≤2000m

    Work Altitude

  • 5-95% RH

    Work Humidity

  • EN/IEC61851-1

  • EN/IEC61851-23

  • EN/IEC61851-24

  • IEC62196-1

  • IEC62196-3
